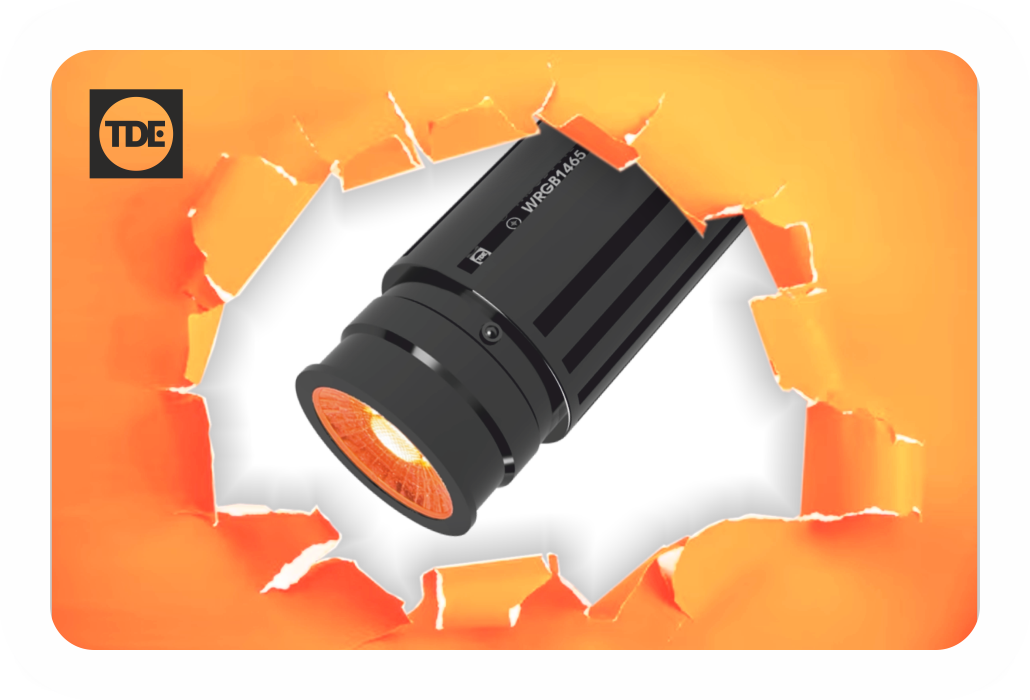

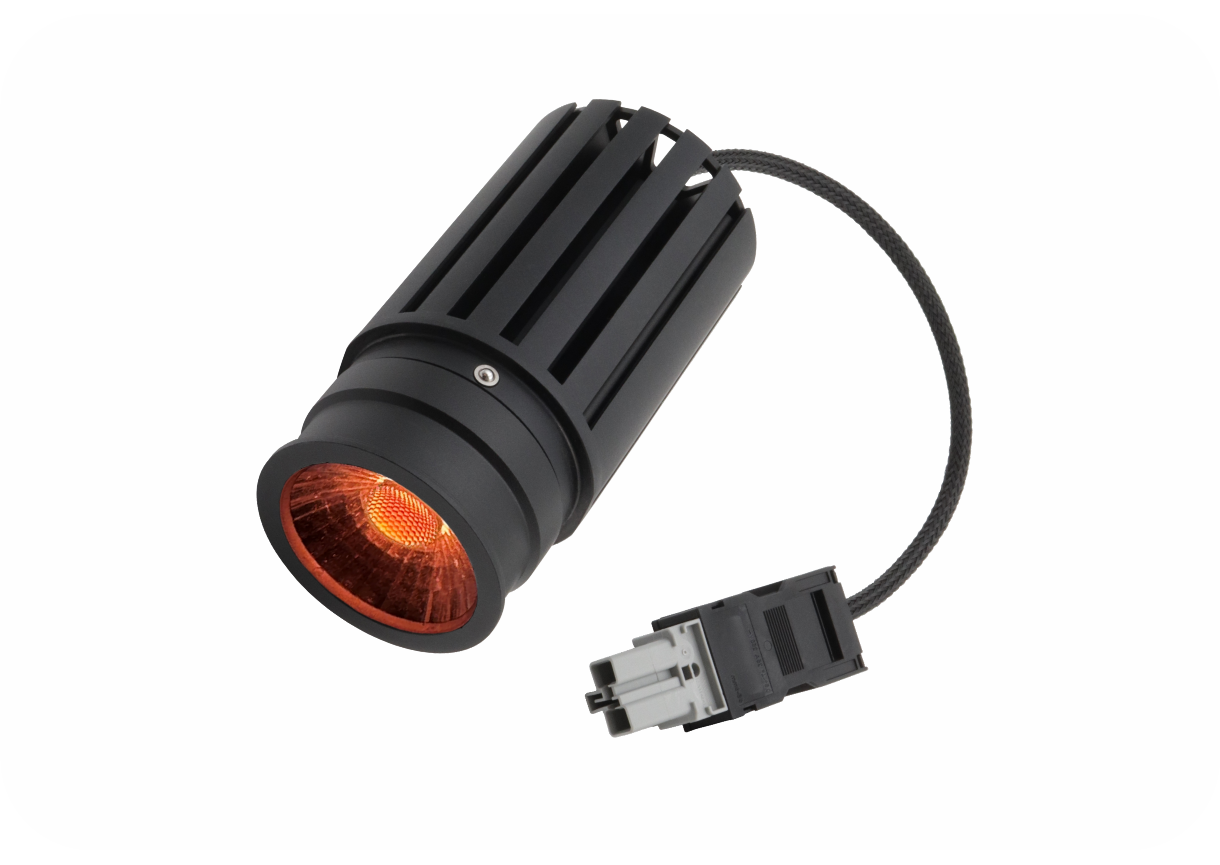

Moodspot+LP – One Fixture, Every Mood
Meet the Moodspot+LP: a new generation downlight that brings unmatched flexibility to architectural and entertainment lighting. Where most luminaires come in separate versions, the Moodspot+LP combines Warm Dimming, Tunable White, and full RGBW color control into a single, powerful fixture—without compromise.
Designed for theatres, auditoriums, and premium house lighting, the Moodspot+LP delivers a high-quality light output with an exceptionally high CRI. Its advanced Warm Dimming and CCT tuning follow the Black Body Locus, smoothly ranging from 6500K down to a candle-like 1400K, and dimming completely flicker-free to 0.0%. When creative freedom is required, the full RGBW engine opens the door to rich colors and subtle accents.

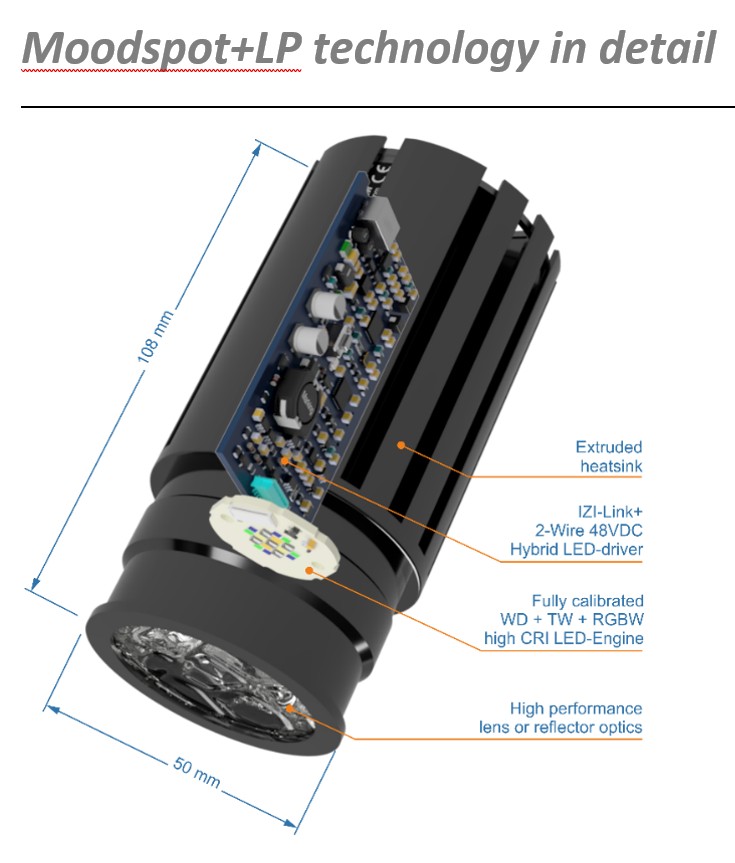

Powered by the internal IZI-Link+ hybrid LED driver, the Moodspot+LP uses reliable two-wire powerline communication and is fully HD camera-proof. Seamless switching between Warm Dimming, Advanced Tunable White, and RGBW modes makes this fixture truly versatile—one solution for every atmosphere, every application.

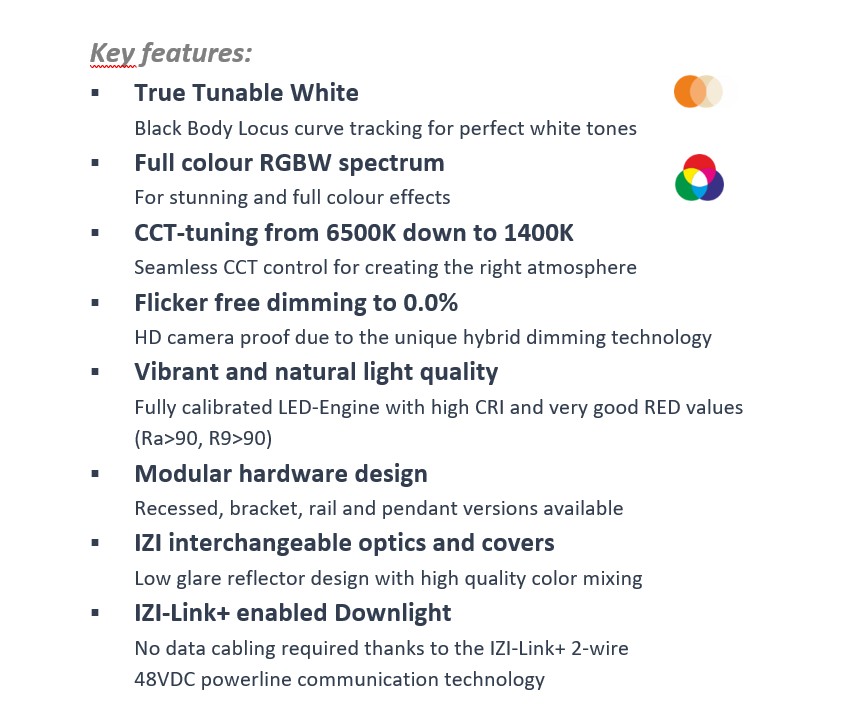

Kenmerken
- Next-Generation IZI-Link+ Downlight
- Advance Tunable White & Warm-dimming

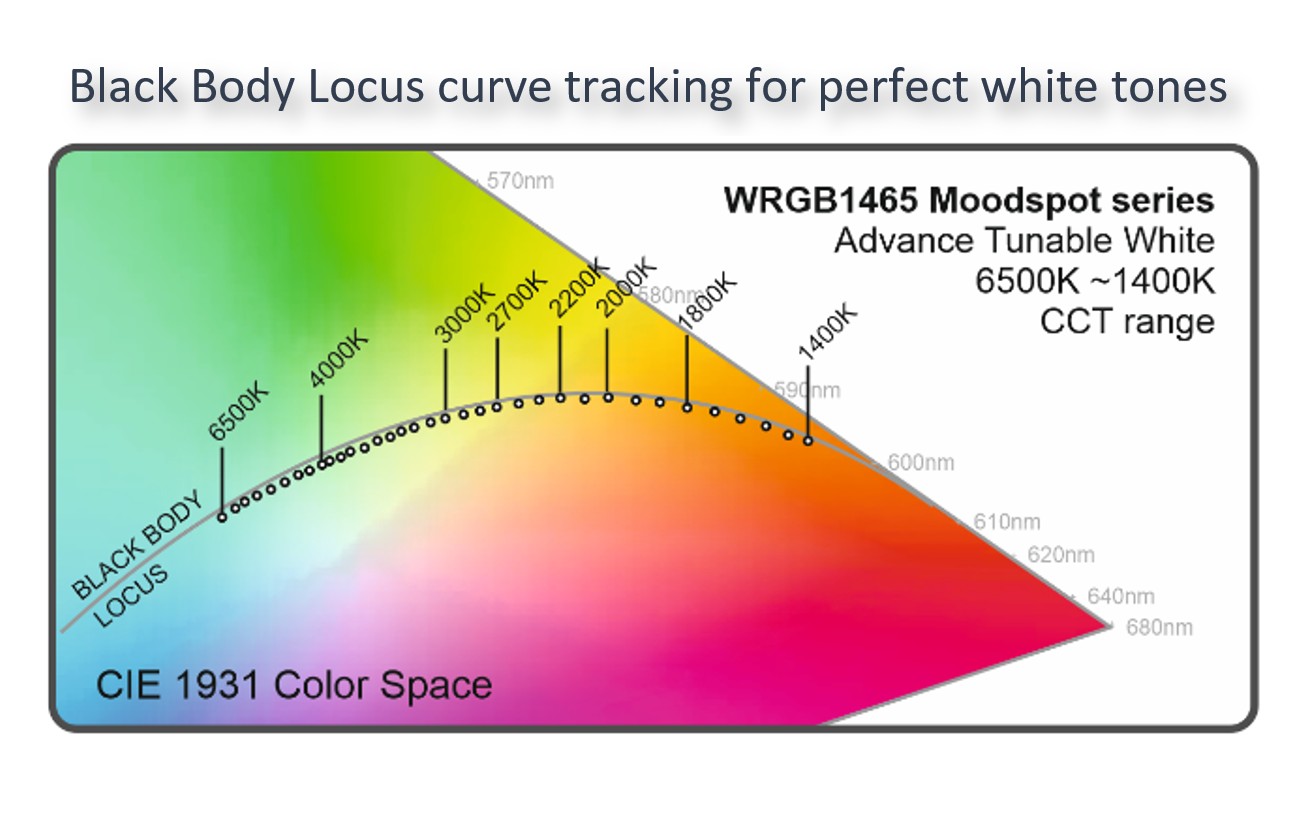

- Pure White tracking the Black Body Locus
- Smooth and flicker-free dimming to 0.0%
- 48VDC IZI-Link+ PowerLine Communication
- HD Camera proof

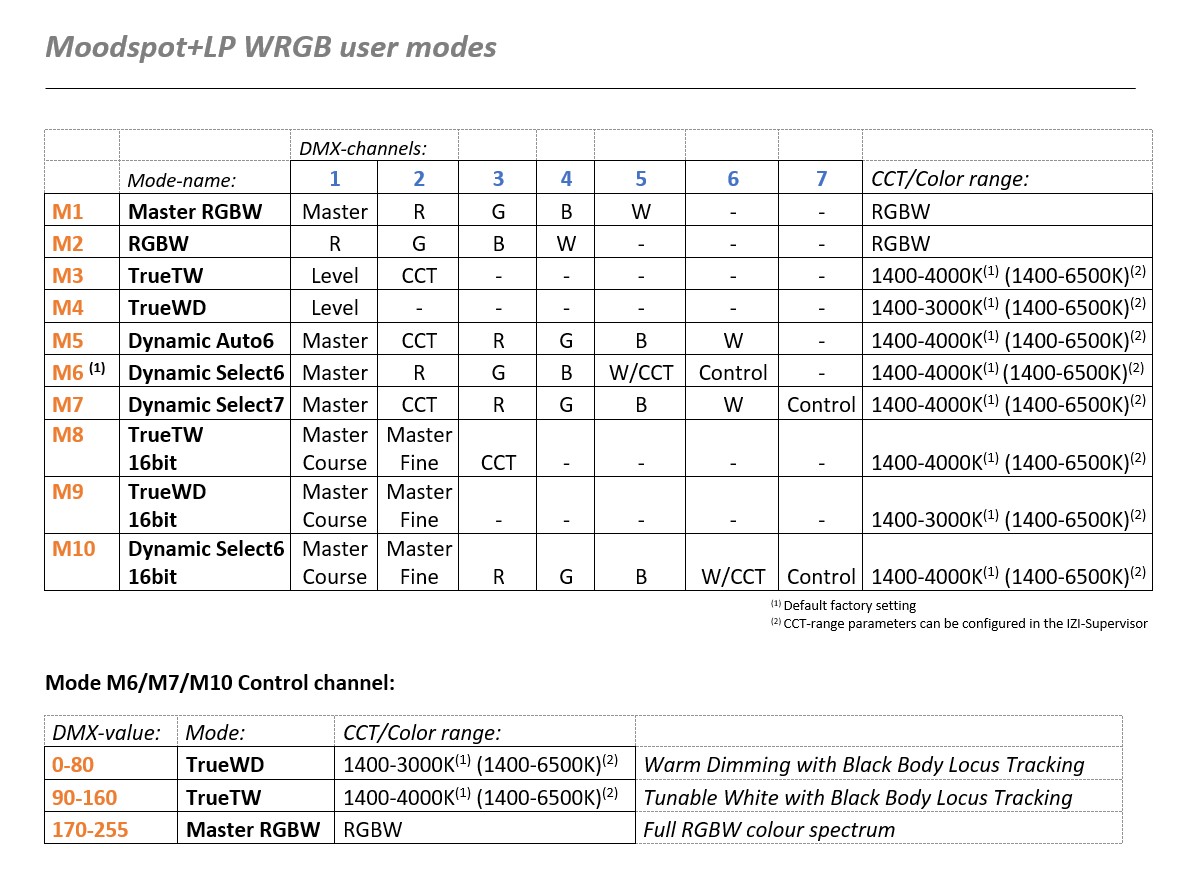

- 16 + 8bit TW / WD and WRGB modes
Technische specificaties
LED
| Colour temperature | 1400K-6500K / CCT-Tuning mode |
| RGBW Colours mix | RGBW tuning mode |
| Lumen output | 1000lm LED-engine – 800 lumen @ 3000K (with 24° optic) |
| Colour rendering | Ra > 90 / R9 > 80 (CCT @ 3000K) |
| Colour variation | < 3 MacAdam Elipse |
Voeding
| Power supply | 48VDC IZI-Link+ system |
| Current | 300mA |
| Power consumption | 12W maximum |
Bediening
| Control system | IZI-Link+ system (48V PowerLine Communiucation System) |
| Hybrid dimming technology | Flicker-free and HD Camera proof |
| PMW-frequency | 24kHz Dynamic |
| Control | Art-Net / sACN / DMX-RDM / OSC via IZI-Link+ system |
Materiaal
| Beam-angle | 15° / 24° / 36° / 60° |
| Weight | 240 gram |
| IP-Rating | IP20 |
| Connection | WAGO 770-252 / Winsta MIDI / 2-pole |

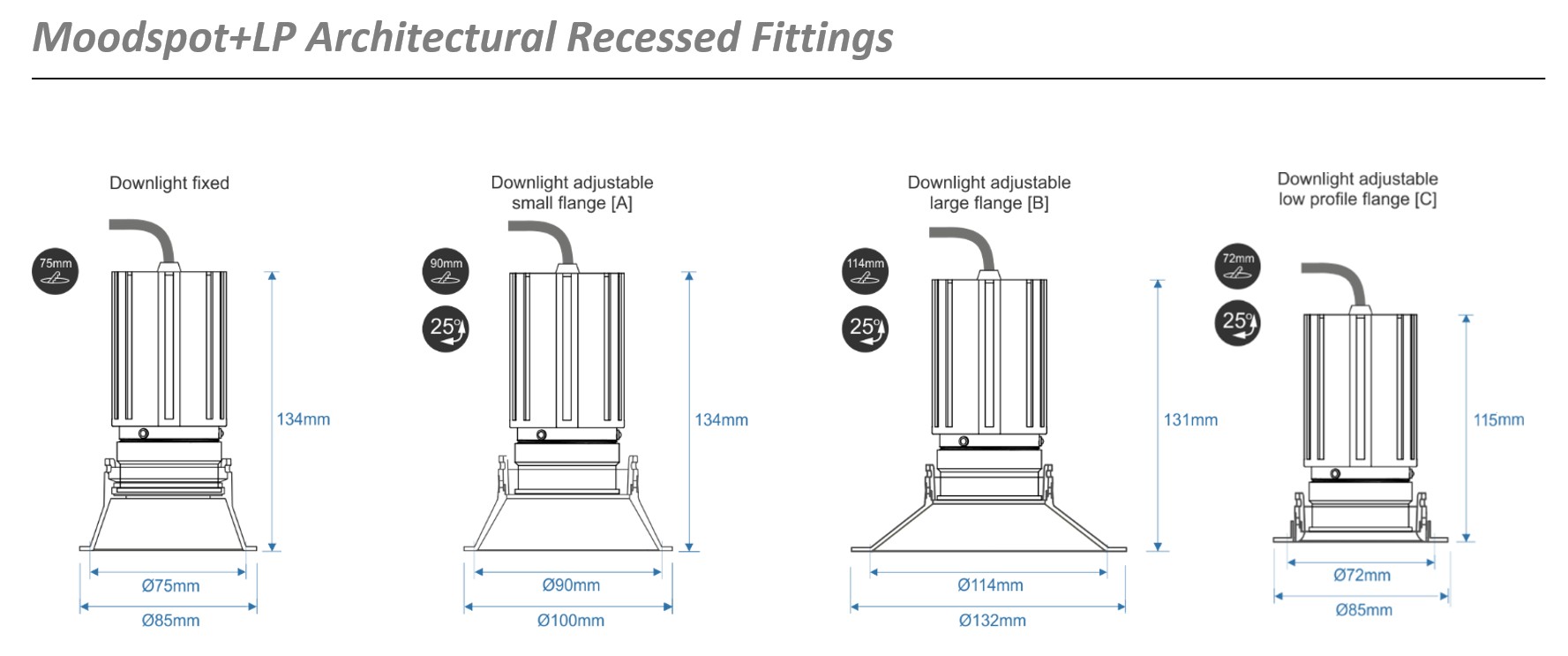

| Housing | LED-module 50mm fitting |
| Colours | Black (Other colours optional) |
| Material | Aluminium + PMMA (lens) |
| Accessoires | Under development |
