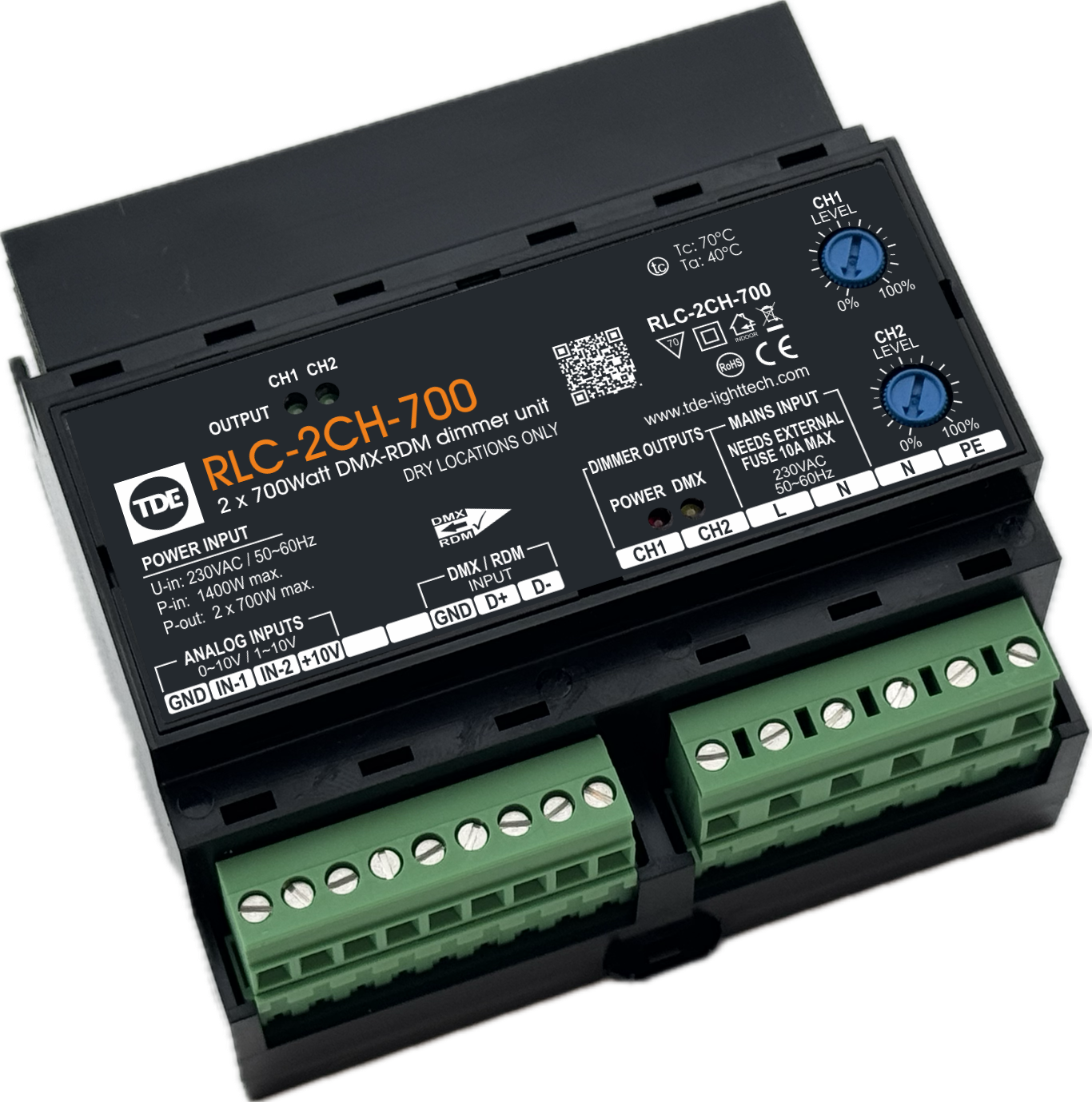

The RLC-2CH-700 is a universal dimmer that is suitable for high-voltage luminaires and LED retrofit lamps.
Two independently controllable outputs which have a 700W output each. Parallel connection is possible creating a combined 1400W of output power.
Each channel can be configured as phase leading or phase trailing.
The RLC-2CH-700 Universal dimmer is controllable as DMX-RDM, 0..10V, 1..10V or stand-alone and is configurable through on-board dip-switches, RDM or via PC software
Kenmerken
- High output power 2 x 700W or 1 x 1400W
- Leading or Trailing edge phase control
- DMX512, RDM and Analog inputs
- Resistive, Inductive & Capacitive loads
- PC-software for user & dimmer settings
- DIN-rail mounted housing
Technische specificaties
Voeding
| Input voltage | 230VAC 50~60Hz |
| Output voltage | 230VAC |
| Output power | 2 x 700W/VA or 1 x 1400W/VA |
| Dimming technic | Leading or trailing edge phase control |
Bediening
| Digital input | DMX512 or RDM |
| Analog input | 2 x 0~10V or 2 x 1~10V |
